• Lifecycle status Active
  • RoHS RoHS Compliant
  • DescriptionRELAY GEN PURPOSE DPST 16A 24V
  • Category
  • Datasheet RM505024 Datasheet
  • ECAD Model
  • Share
In Stock: 134

Can ship immediately

Pricing:

Call for price or sumbit a RFQ

Quote It

Technical Details

  • Series:RM, SCHRACK
  • Package:Tray
  • Part Status:Obsolete
  • Mounting Type:Chassis Mount
  • Coil Voltage:24VDC
  • Contact Form:DPST-NO (2 Form A)
  • Contact Rating (Current):16 A
  • Switching Voltage:440VAC - Max
  • Coil Current:70.8 mA
  • Coil Type:Non Latching
  • Features:-



  • Termination Style:Quick Connect - 0.250" (6.3mm)
  • Seal Rating:-
  • Coil Insulation:-
  • Must Operate Voltage:18 VDC
  • Must Release Voltage:2.4 VDC
  • Operate Time:20 ms
  • Release Time:5 ms
  • Operating Temperature:-45°C ~ 50°C
  • Contact Material:Silver Cadmium Oxide (AgCdO)
  • Relay Type:General Purpose

Related Products


RM602048

RELAY GEN PURPOSE 3PST 10A 48V

RM602048 Datasheet

Call for price


RM637024

RELAY GEN PURPOSE 3PST 10A 24V

RM637024 Datasheet

Call for price


RM707060

RELAY GEN PURPOSE 3PDT 16A 60V

RM707060 Datasheet

Call for price


RM709024

RELAY GEN PURPOSE 3PDT 16A 24V

RM709024 Datasheet

Call for price


RM732048

RELAY GEN PURPOSE 3PDT 16A 48V

RM732048 Datasheet

Call for price


RM735024

RELAY GEN PURPOSE 3PDT 16A 24V

RM735024 Datasheet

Call for price


RM735730

RELAY GEN PURPOSE 3PDT 16A 230V

RM735730 Datasheet

Call for price


RM809024

RELAY GEN PURPOSE DPDT 25A 24V

RM809024 Datasheet

Call for price


RM207012

RELAY GEN PURPOSE DPDT 16A 12V

RM207012 Datasheet

Call for price

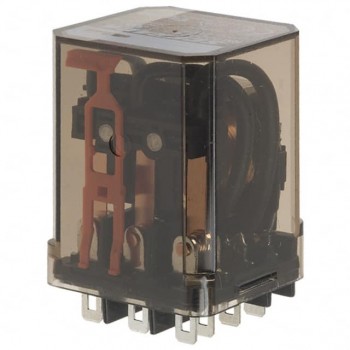

RM332524
