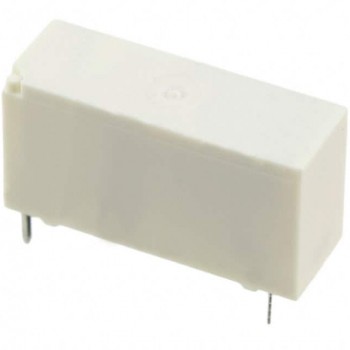

8-1393215-9
TE Connectivity Potter & Brumfield Relays
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionRELAY GEN PURPOSE SPDT 5A 24V
- Category
- Datasheet 8-1393215-9 Datasheet
-
ECAD Model
- Share
In Stock: 122
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:V23057, SCHRACK
- Package:Tube
- Part Status:Obsolete
- Mounting Type:Through Hole
- Coil Voltage:24VDC
- Contact Form:SPDT (1 Form C)
- Contact Rating (Current):5 A
- Switching Voltage:400VAC - Max
- Coil Current:20 mA
- Coil Type:Non Latching
- Features:-
- Termination Style:PC Pin
- Seal Rating:-
- Coil Insulation:-
- Must Operate Voltage:16 VDC
- Must Release Voltage:2.4 VDC
- Operate Time:7 ms
- Release Time:3 ms
- Operating Temperature:-40°C ~ 70°C
- Contact Material:Silver Nickel (AgNi)
- Relay Type:General Purpose
