G7L-1A-TJ-CB DC48

Omron Electronics Components
  • Lifecycle status Active
  • RoHS RoHS Compliant
  • DescriptionRELAY GEN PURPOSE SPST 30A 48V
  • Category
  • Datasheet G7L-1A-TJ-CB DC48 Datasheet
  • ECAD Model
  • Share
In Stock: 183

Can ship immediately

Pricing:

Call for price or sumbit a RFQ

Quote It

Technical Details

  • Series:G7L
  • Package:Bulk
  • Part Status:Obsolete
  • Mounting Type:Chassis Mount
  • Coil Voltage:48VDC
  • Contact Form:SPST-NO (1 Form A)
  • Contact Rating (Current):30 A
  • Switching Voltage:250VAC - Max
  • Coil Current:40 mA
  • Coil Type:Non Latching
  • Features:Test Button



  • Termination Style:Quick Connect - 0.250" (6.3mm)
  • Seal Rating:-
  • Coil Insulation:Class B
  • Must Operate Voltage:36 VDC
  • Must Release Voltage:7.2 VDC
  • Operate Time:30 ms
  • Release Time:30 ms
  • Operating Temperature:-25°C ~ 60°C
  • Contact Material:Silver Tin Indium (AgSnIn)
  • Relay Type:General Purpose

Related Products


G7L-1A-TUB-80-CB AC100/120

RELAY GEN PURPOSE SPST 30A 120V

G7L-1A-TUB-80-CB AC100/120 Datasheet

Call for price


G7L-1A-P-CB AC12

RELAY GEN PURPOSE SPST 20A 12V

G7L-1A-P-CB AC12 Datasheet

Call for price


G7L-1A-P-CB DC6

RELAY GEN PURPOSE SPST 20A 6V

G7L-1A-P-CB DC6 Datasheet

Call for price


HC-6

RELAY GEN PURPOSE SPDT 8A 26.5V

Call for price

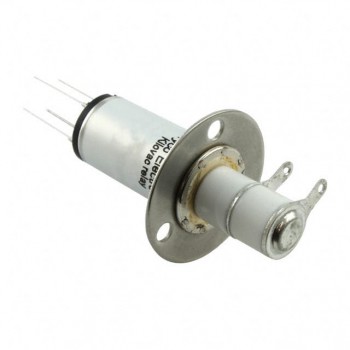

K40P334

RELAY GEN PURPOSE SPST 35A 26.5V

K40P334 Datasheet

Call for price


1-1616147-5

CONTACT ASSY

Call for price


9-1617752-9

RELAY 3PDT 28VDC 25A SLD HOOK

Call for price


1617753

RELAY 3PDT 28VDC 25A SOLDER PIN

Call for price

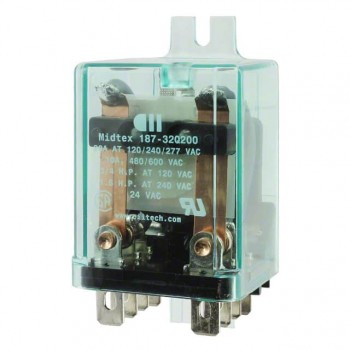

7-1608065-1
