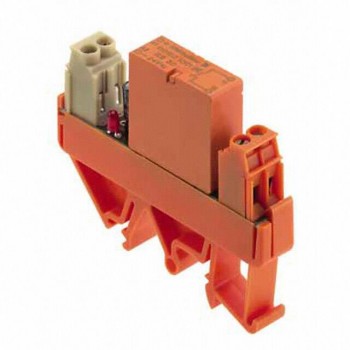

8690270000
Weidmuller
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionRELAY GEN PURPOSE DPDT 10A 24V
- Category
- Datasheet 8690270000 Datasheet
-
ECAD Model
- Share
In Stock: 141
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:RRD
- Package:Bulk
- Part Status:Obsolete
- Mounting Type:Socketable
- Coil Voltage:24VAC
- Contact Form:DPDT (2 Form C)
- Contact Rating (Current):10 A
- Switching Voltage:400VAC - Max
- Coil Current:94.2 mA
- Coil Type:Non Latching
- Features:Test Button
- Termination Style:Plug In, 8 Pin (Octal)
- Seal Rating:-
- Coil Insulation:-
- Must Operate Voltage:19.2 VAC
- Must Release Voltage:7.2 VAC
- Operate Time:15 ms
- Release Time:10 ms
- Operating Temperature:-40°C ~ 50°C
- Contact Material:Silver Nickel (AgNi)
- Relay Type:General Purpose
