ADUM5403WCRWZ-1RL
Linear Technology (Analog Devices, Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionDGTL ISO 2500VRMS 4CH GP 16SOIC
- CategoryDigital Isolators
- Datasheet ADUM5403WCRWZ-1RL Datasheet
-
ECAD Model
- Share
In Stock: 120
Can ship immediately
Pricing:
- 1$9.8545
- 1,000$9.8545
Quote It
Technical Details
- Series:Automotive
- Package:Tape & Reel (TR)
- Part Status:Active
- Technology:Magnetic Coupling
- Type:General Purpose
- Isolated Power:Yes
- Number of Channels:4
- Inputs - Side 1/Side 2:1/3
- Channel Type:Unidirectional
- Voltage - Isolation:2500Vrms
- Common Mode Transient Immunity (Min):25kV/µs
- Data Rate:25Mbps
- Propagation Delay tpLH / tpHL (Max):60ns, 60ns
- Pulse Width Distortion (Max):6ns
- Rise / Fall Time (Typ):2.5ns, 2.5ns
- Voltage - Supply:3V ~ 5.5V
- Operating Temperature:-40°C ~ 105°C
- Mounting Type:Surface Mount
- Package / Case:16-SOIC (0.295", 7.50mm Width)
- Supplier Device Package:16-SOIC
Related Products

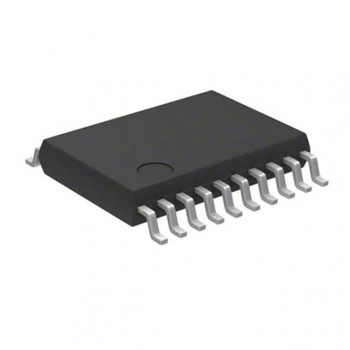

DGT ISO 5000VRMS 2CH LVDS 20SOIC
- 1: $10.61378
- 400: $10.61378
DGT ISO 5000VRMS 2CH LVDS 20SOIC
- 1: $10.61378

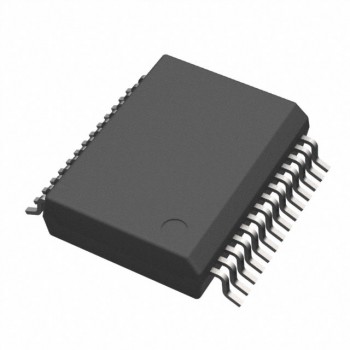

ISOPOWER 5KV, LOWEMI, 4CH DATA 2
