NMTTLD6S5MC-R13
Murata Power Solutions
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionDGTL ISO 1500VAC 2CH GP MODULE
- CategoryDigital Isolators
- Datasheet NMTTLD6S5MC-R13 Datasheet
-
ECAD Model
- Share
In Stock: 107
Can ship immediately
Pricing:
- 1$10.89003
- 350$10.89003
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)
- Part Status:Active
- Technology:Magnetic Coupling
- Type:General Purpose
- Isolated Power:Yes
- Number of Channels:2
- Inputs - Side 1/Side 2:1/1
- Channel Type:Unidirectional
- Voltage - Isolation:1500VAC
- Common Mode Transient Immunity (Min):25kV/µs
- Data Rate:25Mbps
- Propagation Delay tpLH / tpHL (Max):33ns, 33ns
- Pulse Width Distortion (Max):3ns
- Rise / Fall Time (Typ):-
- Voltage - Supply:4.5V ~ 5.5V
- Operating Temperature:-40°C ~ 95°C
- Mounting Type:Surface Mount
- Package / Case:16-SMD Module
- Supplier Device Package:Module
Related Products

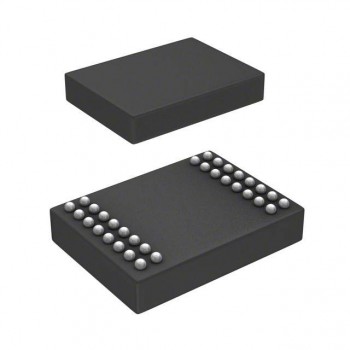

3.75KV ISOPWR & ISORS485 25MBPS
