0293-0-15-15-16-14-10-0
Mill-Max- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN PIN RCPT
- CategoryTerminals - PC Pin Receptacles, Socket Connectors
- Datasheet 0293-0-15-15-16-14-10-0 Datasheet
-
ECAD Model
- Share
In Stock: 194
Can ship immediately
Pricing:
- 1$0.72272
- 1,000$0.70736
Quote It
Technical Details
- Series:0293
- Package:Bulk
- Part Status:Active
- Tail Type:No Tail
- Termination:Press-Fit
- Length - Overall:0.200" (5.08mm)
- Accepts Pin Diameter:0.022" ~ 0.034" (0.56mm ~ 0.86mm)
- Accepts Square Pin Size:0.025" (0.64mm)
- Pin Hole Diameter:0.051" (1.30mm)
- Mounting Hole Diameter:0.067" (1.70mm)
- Flange Diameter:0.086" (2.18mm)
- Tail Diameter:-
- Socket Depth:0.170" (4.32mm)
- Contact Material:Beryllium Copper
- Contact Finish:Gold
- Contact Finish Thickness:10.0µin (0.25µm)
Related Products

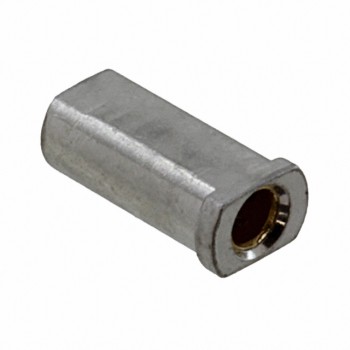

CONN RECEPT PIN .015-.025" .115"
