0436-0-15-80-03-80-10-0

Mill-Max
In Stock: 182

Can ship immediately

Pricing:
  • 1$0.744
  • 1,000$0.7416

Quote It

Technical Details

  • Series:0436
  • Package:Bulk
  • Part Status:Active
  • Tail Type:No Tail
  • Termination:Solder
  • Length - Overall:0.290" (7.37mm)
  • Accepts Pin Diameter:0.040" ~ 0.060" (1.02mm ~ 1.52mm)
  • Accepts Square Pin Size:-



  • Pin Hole Diameter:0.078" (1.98mm)
  • Mounting Hole Diameter:0.102" (2.59mm)
  • Flange Diameter:0.118" (3.00mm)
  • Tail Diameter:-
  • Socket Depth:0.255" (6.48mm)
  • Contact Material:Beryllium Copper
  • Contact Finish:Tin
  • Contact Finish Thickness:200.0µin (5.08µm)

Related Products


6628-0-18-01-18-14-10-0
  • 1: $0.74400
  • 1000: $0.73920

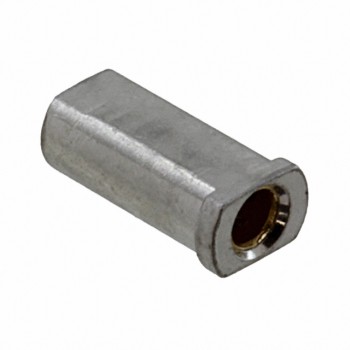

6628-0-18-80-18-14-10-0
