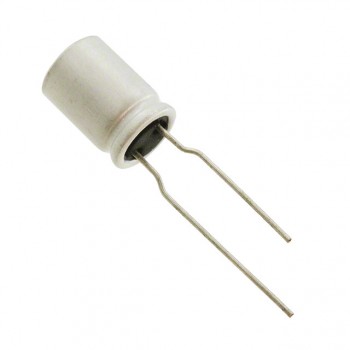

RNS1A221MDN1
Nichicon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM POLY 220UF 20% 10V T/H
- CategoryAluminum - Polymer Capacitors
- Datasheet RNS1A221MDN1 Datasheet
-
ECAD Model
- Share
In Stock: 164
Can ship immediately
Pricing:
- 1$0.43594
- 600$0.43594
Quote It
Technical Details
- Series:FPCAP, RNS
- Package:Bulk
- Part Status:Active
- Type:Polymer
- Capacitance:220 µF
- Tolerance:±20%
- Voltage - Rated:10 V
- ESR (Equivalent Series Resistance):10mOhm
- Lifetime @ Temp.:2000 Hrs @ 105°C
- Operating Temperature:-55°C ~ 105°C
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:550 mA @ 120 Hz
- Ripple Current @ High Frequency:5.5 A @ 100 kHz
- Impedance:-
- Lead Spacing:0.197" (5.00mm)
- Size / Dimension:0.394" Dia (10.00mm)
- Height - Seated (Max):0.551" (14.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can
