CD4027BPW
Texas Instruments
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC FF JK TYPE DUAL 1BIT 16TSSOP
- CategoryLogic - Flip Flops
-
ECAD Model
- Share
In Stock: 2,036
Can ship immediately
Pricing:
- 1$0.55
- 2,160$0.19509
Quote It
Technical Details
- Series:4000B
- Package:Tube
- Part Status:Active
- Function:Set(Preset) and Reset
- Type:JK Type
- Output Type:Complimentary
- Number of Elements:2
- Number of Bits per Element:1
- Clock Frequency:24 MHz
- Max Propagation Delay @ V, Max CL:90ns @ 15V, 50pF
- Trigger Type:Positive Edge
- Current - Output High, Low:6.8mA, 6.8mA
- Voltage - Supply:3V ~ 18V
- Current - Quiescent (Iq):4 µA
- Input Capacitance:5 pF
- Operating Temperature:-55°C ~ 125°C (TA)
- Mounting Type:Surface Mount
- Supplier Device Package:16-TSSOP
- Package / Case:16-TSSOP (0.173", 4.40mm Width)
Related Products
D FLIP-FLOP
- 1: $0.56000
- 2500: $0.39900
- 5000: $0.37905
D FLIP-FLOP
- 1: $0.57000
J-K FLIP-FLOP
- 1: $0.57000
D FLIP-FLOP, 4-BIT, TTL
- 1: $0.57000

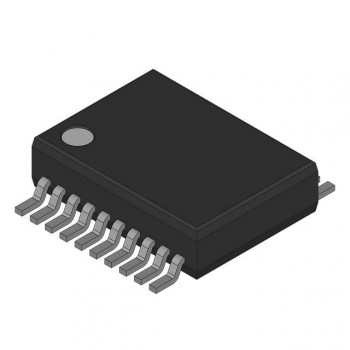

FAST OCTAL D REGISTER
