MM74HCT74MX
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionD FLIP-FLOP, HCT SERIES, 2-FUNC,
- CategoryLogic - Flip Flops
- Datasheet MM74HCT74MX Datasheet
-
ECAD Model
- Share
In Stock: 163,794
Can ship immediately
Pricing:
- 1$0.23
- 2,500$0.22862
- 5,000$0.21388
- 12,500$0.19912
- 25,000$0.1888
Quote It
Technical Details
- Series:74HCT
- Package:Bulk
- Part Status:Active
- Function:Set(Preset) and Reset
- Type:D-Type
- Output Type:Complimentary
- Number of Elements:2
- Number of Bits per Element:1
- Clock Frequency:27 MHz
- Max Propagation Delay @ V, Max CL:35ns @ 5V, 50pF
- Trigger Type:Positive Edge
- Current - Output High, Low:4.8mA, 4.8mA
- Voltage - Supply:4.5V ~ 5.5V
- Current - Quiescent (Iq):2 µA
- Input Capacitance:5 pF
- Operating Temperature:-40°C ~ 85°C (TA)
- Mounting Type:Surface Mount
- Supplier Device Package:14-SOIC
- Package / Case:14-SOIC (0.154", 3.90mm Width)
Related Products
SN74LVC374A OCTAL EDGE-TRIGGERED
- 1: $0.23000
- 20: $0.20236
- 40: $0.19015
SN74AHC374 OCTAL EDGE-TRIGGERED
- 1: $0.23000
- 20: $0.20377
- 40: $0.19136
SN74F174A HEX D-TYPE FLIP-FLOP W
- 1: $0.23000
- 2500: $0.22910
- 5000: $0.21330

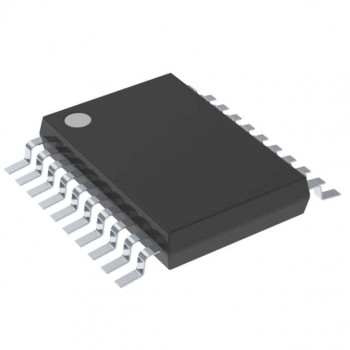

SN74LV574A OCTAL EDGE-TRIGGERED
