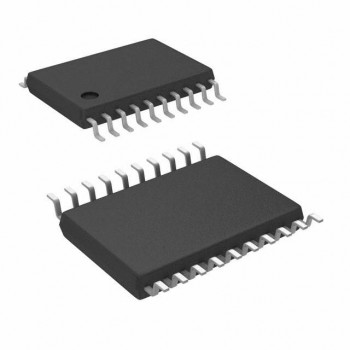

MC74VHC574DWR2G
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionBUS DRIVER, AHC/VHC SERIES, 1-FU
- CategoryLogic - Flip Flops
- Datasheet MC74VHC574DWR2G Datasheet
-
ECAD Model
- Share
In Stock: 32,943
Can ship immediately
Pricing:
- 1$0.28
- 1,000$0.2775
Quote It
Technical Details
- Series:74VHC
- Package:Bulk
- Part Status:Active
- Function:Standard
- Type:D-Type
- Output Type:Tri-State, Non-Inverted
- Number of Elements:1
- Number of Bits per Element:8
- Clock Frequency:115 MHz
- Max Propagation Delay @ V, Max CL:10.6ns @ 5V, 50pF
- Trigger Type:Positive Edge
- Current - Output High, Low:8mA, 8mA
- Voltage - Supply:2V ~ 5.5V
- Current - Quiescent (Iq):4 µA
- Input Capacitance:4 pF
- Operating Temperature:-40°C ~ 85°C (TA)
- Mounting Type:Surface Mount
- Supplier Device Package:20-SOIC
- Package / Case:20-SOIC (0.295", 7.50mm Width)
