MC14076BDG
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionD FLIP-FLOP, 4000/14000/40000 SE
- CategoryLogic - Flip Flops
- Datasheet MC14076BDG Datasheet
-
ECAD Model
- Share
In Stock: 10,434
Can ship immediately
Pricing:
- 1$0.31
- 1,008$0.2676
Quote It
Technical Details
- Series:4000B
- Package:Bulk
- Part Status:Active
- Function:Master Reset
- Type:D-Type
- Output Type:Tri-State, Non-Inverted
- Number of Elements:1
- Number of Bits per Element:4
- Clock Frequency:12 MHz
- Max Propagation Delay @ V, Max CL:180ns @ 15V, 50pF
- Trigger Type:Positive Edge
- Current - Output High, Low:8.8mA, 8.8mA
- Voltage - Supply:3V ~ 18V
- Current - Quiescent (Iq):20 µA
- Input Capacitance:5 pF
- Operating Temperature:-55°C ~ 125°C (TA)
- Mounting Type:Surface Mount
- Supplier Device Package:16-SOIC
- Package / Case:16-SOIC (0.154", 3.90mm Width)
Related Products
SN74AUC1G74 SINGLE POSITIVE-EDGE
- 1: $0.31000
- 3000: $0.30740
- 6000: $0.28620
IC JK TYPE POS TRG DUAL 16SO
- 1: $0.31000
FLIP FLOP D-TYPE BUS INTERFACE P
- 1: $0.31000
SN74HCT74 DUAL D-TYPE POSITIVE-E
- 1: $0.32000
- 250: $0.32000
- 500: $0.27234

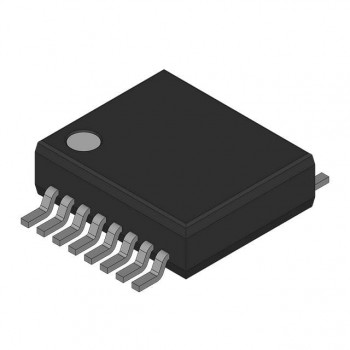

NOW NEXPERIA 74HC173DB - D FLIP-
