SN74HCT74PWT
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionSN74HCT74 DUAL D-TYPE POSITIVE-E
- CategoryLogic - Flip Flops
-
ECAD Model
- Share
In Stock: 8,622
Can ship immediately
Pricing:
- 1$0.32
- 250$0.32
- 500$0.27234
- 1,250$0.21787
Quote It
Technical Details
- Series:74HCT
- Package:Bulk
- Part Status:Active
- Function:Set(Preset) and Reset
- Type:D-Type
- Output Type:Complimentary
- Number of Elements:2
- Number of Bits per Element:1
- Clock Frequency:46 MHz
- Max Propagation Delay @ V, Max CL:25ns @ 5.5V, 50pF
- Trigger Type:Positive Edge
- Current - Output High, Low:4mA, 4mA
- Voltage - Supply:4.5V ~ 5.5V
- Current - Quiescent (Iq):4 µA
- Input Capacitance:3 pF
- Operating Temperature:-40°C ~ 85°C (TA)
- Mounting Type:Surface Mount
- Supplier Device Package:14-TSSOP
- Package / Case:14-TSSOP (0.173", 4.40mm Width)
Related Products
NOW NEXPERIA 74HC173DB - D FLIP-
- 1: $0.32000
SN74LVC1G80-Q1 AUTOMOTIVE SINGLE
- 1: $0.33000
- 250: $0.33000
- 500: $0.28188
SN74LVC1G79-Q1 - AUTOMOTIVE SING
- 1: $0.33000
- 250: $0.33000
- 500: $0.28188
SN74F574 OCTAL EDGE-TRIGGERED D-
- 1: $0.33000
- 2000: $0.32480
- 6000: $0.30240
SN74AC534 OCTAL EDGE-TRIGGERED D
- 1: $0.33000
- 20: $0.29170
- 40: $0.27401
SN74F574 OCTAL EDGE-TRIGGERED D-
- 1: $0.37990
- 20: $0.33422
- 40: $0.31410
OCTAL EDGE-TRIGGERED D-TYPE FLIP
- 1: $0.33000

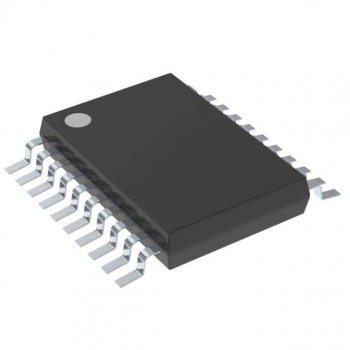

SN74AC534 OCTAL EDGE-TRIGGERED D
