In Stock: 950

Can ship immediately

Pricing:
  • 1$6.38

Quote It

Technical Details

  • Series:-
  • Package:Tube
  • Part Status:Obsolete
  • Switch Circuit:-
  • Multiplexer/Demultiplexer Circuit:8:1
  • Number of Circuits:2
  • On-State Resistance (Max):100Ohm
  • Channel-to-Channel Matching (ΔRon):1.8Ohm
  • Voltage - Supply, Single (V+):2.7V ~ 16V
  • Voltage - Supply, Dual (V±):±2.7V ~ 8V



  • Switch Time (Ton, Toff) (Max):150ns, 150ns
  • -3db Bandwidth:-
  • Charge Injection:2pC
  • Channel Capacitance (CS(off), CD(off)):11pF, 80pF
  • Current - Leakage (IS(off)) (Max):100pA
  • Crosstalk:-92dB @ 100kHz
  • Operating Temperature:0°C ~ 70°C (TA)
  • Mounting Type:Through Hole
  • Package / Case:28-DIP (0.600", 15.24mm)
  • Supplier Device Package:28-PDIP

Related Products


MAX303CSE

DUAL, HIGH-SPEED ANALOG SWITCH

MAX303CSE Datasheet
  • 1: $6.39000

ADG439FBR

DIFFERENTIAL MUX,4 CHANNEL

ADG439FBR Datasheet
  • 1: $6.39000
  • 48: $6.39000

SW201BQ/883C

QUAD SPST BIFET ANALOG SWITCH

  • 1: $6.45000

MAX337EPI+

DIFFERENTIAL MULTIPLEXER, 2 FUNC

  • 1: $6.46000

DG381ACJ

CMOS ANALOG SWITCH

DG381ACJ Datasheet
  • 1: $6.51000

MAX4111CSA

BUFFERED VIDEO SWITCHES

  • 1: $6.53000

DG423DJ

ANALOG SWITCHES WITH LATCHES

  • 1: $6.53000

HI9P0548-5

ANALOG MUX WITH PROTECTION

HI9P0548-5 Datasheet
  • 1: $6.58000

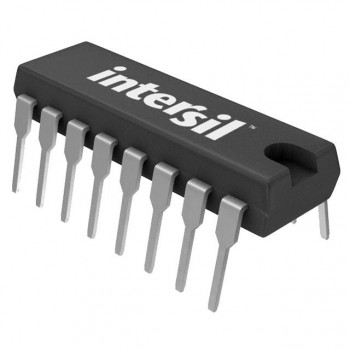

HI3-5043-5
