NX3L1T5157GM,132
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC ANALOG SWITCH SPDT XSON6
- CategoryInterface - Analog Switches, Multiplexers, Demultiplexers
- Datasheet NX3L1T5157GM,132 Datasheet
-
ECAD Model
- Share
In Stock: 12,800
Can ship immediately
Pricing:
- 1$0.14
- 5,000$0.13775
- 10,000$0.12825
- 25,000$0.12635
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Obsolete
- Switch Circuit:SPDT
- Multiplexer/Demultiplexer Circuit:2:1
- Number of Circuits:1
- On-State Resistance (Max):750mOhm
- Channel-to-Channel Matching (ΔRon):20mOhm
- Voltage - Supply, Single (V+):1.4V ~ 4.3V
- Voltage - Supply, Dual (V±):-
- Switch Time (Ton, Toff) (Max):40ns, 20ns
- -3db Bandwidth:60MHz
- Charge Injection:15pC
- Channel Capacitance (CS(off), CD(off)):35pF
- Current - Leakage (IS(off)) (Max):10nA
- Crosstalk:-
- Operating Temperature:-40°C ~ 125°C (TA)
- Mounting Type:Surface Mount
- Package / Case:6-XFDFN
- Supplier Device Package:6-XSON, SOT886 (1.45x1)
Related Products

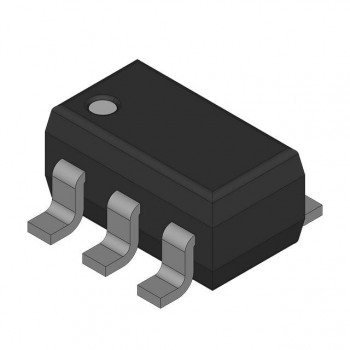

TS5A4594 SINGLE-CHANNEL 8-OHM SP
- 1: $0.14000
- 3000: $0.14000
SN74LVC1G66 SINGLE ANALOG SWITCH
- 1: $0.15000
- 3000: $0.15000
- 6000: $0.14062
CD4051B CMOS SINGLE 8-CHANNEL AN
- 1: $0.46000
- 2500: $0.20460
- 5000: $0.19140
CD74HC4051-Q1 AUTOMOTIVE CATALOG
- 1: $0.15000
- 2500: $0.15000
- 5000: $0.14032

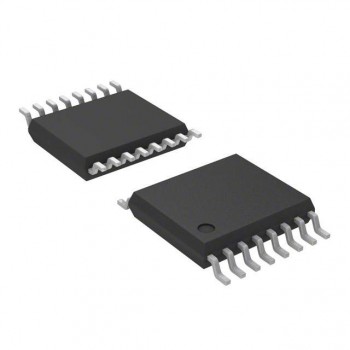

CD4051B-Q1 AUTOMOTIVE CATALOG CM
