MC74VHC4316DR2G
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionSPST, 4 FUNC, 1 CHANNEL, CMOS, P
- CategoryInterface - Analog Switches, Multiplexers, Demultiplexers
- Datasheet MC74VHC4316DR2G Datasheet
-
ECAD Model
- Share
In Stock: 9,717
Can ship immediately
Pricing:
- 1$0.25
- 2,500$0.23345
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Active
- Switch Circuit:SPST - NO/NC
- Multiplexer/Demultiplexer Circuit:1:1
- Number of Circuits:4
- On-State Resistance (Max):90Ohm
- Channel-to-Channel Matching (ΔRon):15Ohm
- Voltage - Supply, Single (V+):2V ~ 6V
- Voltage - Supply, Dual (V±):±2V ~ 6V
- Switch Time (Ton, Toff) (Max):-
- -3db Bandwidth:160MHz
- Charge Injection:-
- Channel Capacitance (CS(off), CD(off)):10pF
- Current - Leakage (IS(off)) (Max):100nA
- Crosstalk:-80dB @ 1MHz
- Operating Temperature:-55°C ~ 125°C (TA)
- Mounting Type:Surface Mount
- Package / Case:16-SOIC (0.154", 3.90mm Width)
- Supplier Device Package:16-SOIC
Related Products
SN74AUC2G66 DUAL BILATERAL ANALO
- 1: $0.26000
- 3000: $0.23584
- 6000: $0.22110
0.9-OHM SPDT ANALOG SWITCH 5-V/3
- 1: $0.26000
- 3000: $0.25520
NOW NEXPERIA 74HC4053DB - SINGLE
- 1: $0.26000
CD74HCT4066 HIGH-SPEED CMOS LOGI
- 1: $0.26000
- 250: $0.26000
- 500: $0.22977
SN74AUC2G66 DUAL BILATERAL ANALO
- 1: $0.26000
- 3000: $0.09533
- 6000: $0.08875
NOW NEXPERIA 74HCT4066DB - SPST,
- 1: $0.26000

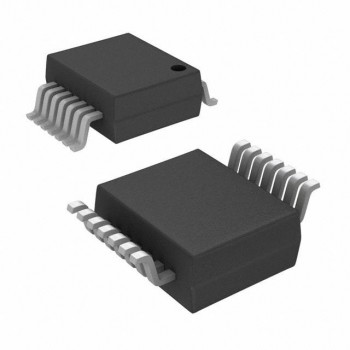

TS3A5018 10-OHM QUAD SPDT ANALOG
