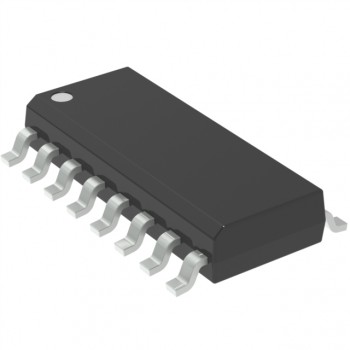

MC74LVXT4053DTG
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionSINGLE-ENDED MULTIPLEXER, 3 FUNC
- CategoryInterface - Analog Switches, Multiplexers, Demultiplexers
- Datasheet MC74LVXT4053DTG Datasheet
-
ECAD Model
- Share
In Stock: 194
Can ship immediately
Pricing:
- 1$0.29
- 96$0.23819
- 192$0.19561
- 576$0.15605
- 1,056$0.12618
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Active
- Switch Circuit:SPDT
- Multiplexer/Demultiplexer Circuit:2:1
- Number of Circuits:3
- On-State Resistance (Max):26Ohm
- Channel-to-Channel Matching (ΔRon):10Ohm
- Voltage - Supply, Single (V+):2.5V ~ 6V
- Voltage - Supply, Dual (V±):±6V
- Switch Time (Ton, Toff) (Max):-
- -3db Bandwidth:80MHz
- Charge Injection:12pC
- Channel Capacitance (CS(off), CD(off)):10pF
- Current - Leakage (IS(off)) (Max):100nA
- Crosstalk:-
- Operating Temperature:-55°C ~ 125°C (TA)
- Mounting Type:Surface Mount
- Package / Case:16-TSSOP (0.173", 4.40mm Width)
- Supplier Device Package:16-TSSOP
