In Stock: 107

Can ship immediately

Pricing:
  • 1$7.155
  • 1,000$7.155

Quote It

Technical Details

  • Series:-
  • Package:Tape & Reel (TR)
  • Part Status:Active
  • Switch Circuit:-
  • Multiplexer/Demultiplexer Circuit:8:1
  • Number of Circuits:2
  • On-State Resistance (Max):200Ohm
  • Channel-to-Channel Matching (ΔRon):3.5Ohm
  • Voltage - Supply, Single (V+):5V ~ 16.5V
  • Voltage - Supply, Dual (V±):±5V ~ 16.5V



  • Switch Time (Ton, Toff) (Max):95ns, 100ns
  • -3db Bandwidth:490MHz
  • Charge Injection:0.5pC
  • Channel Capacitance (CS(off), CD(off)):2pF, 9pF
  • Current - Leakage (IS(off)) (Max):200pA
  • Crosstalk:-85dB @ 1MHz
  • Operating Temperature:-40°C ~ 125°C (TA)
  • Mounting Type:Surface Mount
  • Package / Case:28-TSSOP (0.173", 4.40mm Width)
  • Supplier Device Package:28-TSSOP

Related Products


ADG5248FBRUZ-RL7

IC MULTIPLEXER 8X1 20TSSOP

ADG5248FBRUZ-RL7 Datasheet
  • 1: $7.24500
  • 1000: $7.24500

MAX312CUE+

IC SWITCH QUAD SPST 16TSSOP

MAX312CUE+ Datasheet
  • 1: $7.30604
  • 96: $6.67168

ADG528AKPZ-REEL

IC MULTIPLEXER 8X1 20PLCC

ADG528AKPZ-REEL Datasheet
  • 1: $7.33096
  • 1000: $6.25820

MPC508AUG4

IC MULTIPLEXER 8X1 16SOIC

  • 1: $7.45100
  • 80: $7.45100

DG528DN+

8-CHANNEL, LATCHABLE MULTIPLEXER

  • 1: $7.47173

MAX313FEPE+

IC SWITCH QUAD SPST 16DIP

MAX313FEPE+ Datasheet
  • 1: $7.48420
  • 50: $6.83185

ADG726BCPZ-REEL

IC MULTIPLEXER DUAL 16X1 48LFCSP

ADG726BCPZ-REEL Datasheet
  • 1: $7.48500
  • 2500: $7.38933

MAX327CEE+T

QUAD, SPST, ULTRA-LOW-LEAKAGE, C

  • 1: $7.59000

MAX394EAP+T

IC SWITCH QUAD SPDT 20SSOP

MAX394EAP+T Datasheet
  • 1: $7.60500
  • 2000: $6.70463

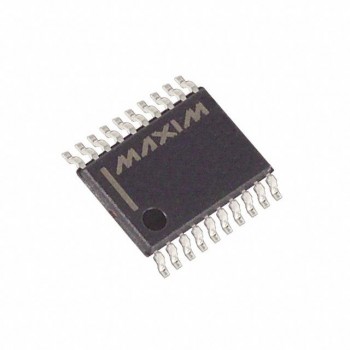

MAX394EUP+T
