0520891210
Woodhead - Molex- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN FPC TOP 12POS 1.00MM R/A
- CategoryFFC, FPC (Flat Flexible) Connectors
-
ECAD Model
- Share
In Stock: 192
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:52089
- Package:Tray
- Part Status:Obsolete
- Flat Flex Type:FPC
- Mounting Type:Through Hole, Right Angle
- Connector/Contact Type:Contacts, Top
- Number of Positions:12
- Pitch:0.039" (1.00mm)
- Termination:Kinked Pin
- FFC, FCB Thickness:0.30mm
- Height Above Board:0.118" (3.00mm)
- Locking Feature:Slide Lock
- Cable End Type:Tapered
- Contact Material:Phosphor Bronze
- Contact Finish:Tin
- Housing Material:Polyamide (PA66), Nylon 6/6
- Actuator Material:Polyester
- Features:Zero Insertion Force (ZIF)
- Voltage Rating:50V
- Operating Temperature:-20°C ~ 80°C
- Material Flammability Rating:UL94 V-0
Related Products
CONN FPC VERT 18POS 1.00MM PCB
Call for price
CONN FFC VERT 12POS 1.25MM PCB
Call for price

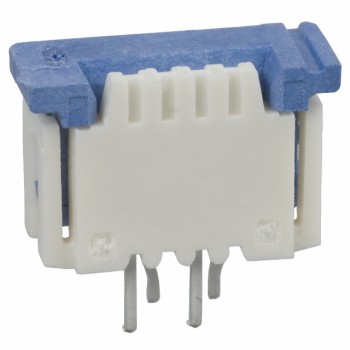

CONN FFC VERT 4POS 1.00MM PCB
Call for price

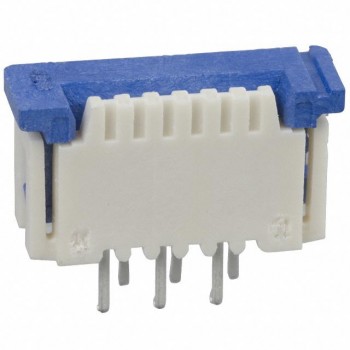

CONN FFC VERT 6POS 1.00MM PCB
Call for price

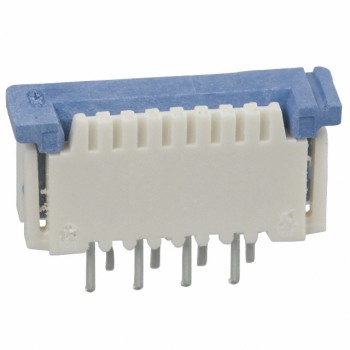

CONN FFC VERT 8POS 1.00MM PCB
Call for price

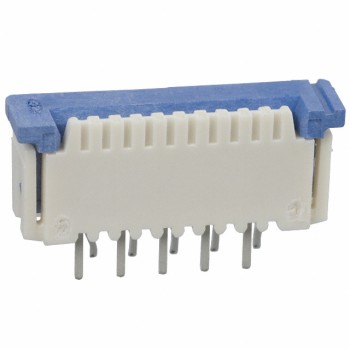

CONN FFC VERT 10POS 1.00MM PCB
