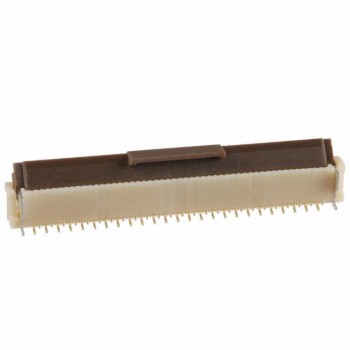

FH12-20S-0.5SV(55)
Hirose
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN FFC VERT 20POS 0.50MM SMD
- CategoryFFC, FPC (Flat Flexible) Connectors
- Datasheet FH12-20S-0.5SV(55) Datasheet
-
ECAD Model
- Share
In Stock: 100
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:FH12
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Obsolete
- Flat Flex Type:FFC, FPC
- Mounting Type:Surface Mount
- Connector/Contact Type:Contacts, Vertical - 1 Sided
- Number of Positions:20
- Pitch:0.020" (0.50mm)
- Termination:Solder
- FFC, FCB Thickness:0.30mm
- Height Above Board:0.142" (3.60mm)
- Locking Feature:Flip Lock
- Cable End Type:Straight
- Contact Material:Phosphor Bronze
- Contact Finish:Gold
- Housing Material:Polyamide (PA), Nylon
- Actuator Material:Polyphenylene Sulfide (PPS)
- Features:Solder Retention, Zero Insertion Force (ZIF)
- Voltage Rating:50V
- Operating Temperature:-40°C ~ 85°C
- Material Flammability Rating:UL94 V-0
