74AHC32PW-Q100J
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC GATE OR 4CH 2-INP 14TSSOP
- CategoryLogic - Gates and Inverters
- Datasheet 74AHC32PW-Q100J Datasheet
-
ECAD Model
- Share
In Stock: 15,113
Can ship immediately
Pricing:
- 1$0.08
- 2,500$0.08
Quote It
Technical Details
- Series:74AHC
- Package:Bulk
- Part Status:Active
- Logic Type:OR Gate
- Number of Circuits:4
- Number of Inputs:2
- Features:-
- Voltage - Supply:2V ~ 5.5V
- Current - Quiescent (Max):2 µA
- Current - Output High, Low:8mA, 8mA
- Logic Level - Low:0.5V ~ 1.65V
- Logic Level - High:1.5V ~ 3.85V
- Max Propagation Delay @ V, Max CL:7.5ns @ 5V, 50pF
- Operating Temperature:-40°C ~ 125°C
- Mounting Type:Surface Mount
- Supplier Device Package:14-TSSOP
- Package / Case:14-TSSOP (0.173", 4.40mm Width)
Related Products
IC GATE NAND 3CH 3-INP 14TSSOP
- 1: $0.08000
IC GATE NOR 3CH 3-INP 14TSSOP
- 1: $0.08000

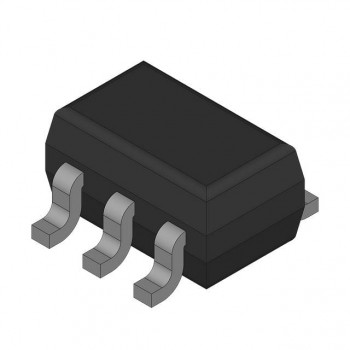

IC INVERT SCHMITT 1CH 1IN 5TSSOP
