OD1238-12MBXC01A
Orion Fans
- Lifecycle status Active
- RoHS RoHS Compliant

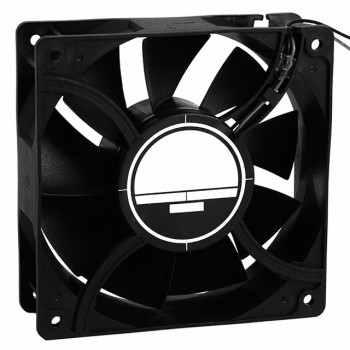

- DescriptionFAN AXIAL 120X38.5MM 12VDC WIRE
- CategoryDC Brushless Fans (BLDC)
- Datasheet OD1238-12MBXC01A Datasheet
-
ECAD Model
- Share
In Stock: 110
Can ship immediately
Pricing:
- 1$18.61633
- 520$18.61633
Quote It
Technical Details
- Series:OD1238 XC
- Package:Bulk
- Part Status:Active
- Voltage - Rated:12VDC
- Size / Dimension:Square - 120mm L x 120mm H
- Width:38.50mm
- Air Flow:175.0 CFM (4.90m³/min)
- Static Pressure:0.510 in H2O (127.0 Pa)
- Bearing Type:Ball
- Fan Type:Tubeaxial
- Features:Auto Restart, Speed Sensor (Tach)
- Noise:57.0dB
- Power (Watts):18 W
- RPM:3800 RPM
- Termination:3 Wire Leads
- Ingress Protection:-
- Operating Temperature:14 ~ 158°F (-10 ~ 70°C)
- Approval Agency:cURus, TUV
- Weight:-
