DC1203812U2B-3T0

Wakefield-Vette
  • Lifecycle status Active
  • RoHS RoHS Compliant
  • DescriptionFAN 12VDC 120X38MM 3WIRES
  • CategoryDC Brushless Fans (BLDC)
  • ECAD Model
  • Share
In Stock: 176

Can ship immediately

Pricing:
  • 1$19.915

Quote It

Technical Details

  • Series:-
  • Package:Box
  • Part Status:Active
  • Voltage - Rated:12VDC
  • Size / Dimension:Square - 120mm L x 120mm H
  • Width:38.00mm
  • Air Flow:178.4 CFM (5.00m³/min)
  • Static Pressure:0.940 in H2O (234.1 Pa)
  • Bearing Type:Ball
  • Fan Type:Tubeaxial



  • Features:Locked Rotor Protection, Speed Sensor (Tach)
  • Noise:54.0dB(A)
  • Power (Watts):18.6 W
  • RPM:4200 RPM
  • Termination:3 Wire Leads
  • Ingress Protection:-
  • Operating Temperature:14 ~ 158°F (-10 ~ 70°C)
  • Approval Agency:CE, cURus, TUV
  • Weight:0.508 lb (230.42 g)

Related Products


DC1203812U2B-BT0

FAN 12VDC 120X38MM 4WIRES

  • 1: $19.91500

09238RA-12N-EL-00

TUBEAXIAL 12V FLANGE LOCK ROTOR

  • 1: $19.91680

09238RA-12N-ET-00

TUBEAXIAL 12V FLANGE TACH 3 WIRE

  • 1: $19.91680

09238RA-12L-EL-00

TUBEAXIAL 12V FLANGE LOCK ROTOR

  • 1: $19.91680

9WP0612P4G01

DC AXIAL FAN 60X60X25MM PWM

  • 1: $19.92575

OD1238-12HHBIP68

12VDC 120X120X38MM IP68

  • 1: $19.93438

OD1238-12MBIP68

12VDC 120X120X38MM IP68

  • 1: $19.93438

OD1238-24HHBIP68

24VDC 120X120X38MM IP68

  • 1: $19.93438

OD1238-24LBIP68

24VDC 120X120X38MM IP68

  • 1: $19.93438

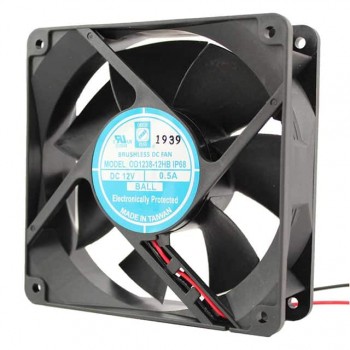

OD1238-24MBIP68
