117-93-316-41-005000
Mill-Max
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN IC DIP SOCKET 16POS GOLD
- CategorySockets for ICs, Transistors
- Datasheet 117-93-316-41-005000 Datasheet
-
ECAD Model
- Share
In Stock: 166
Can ship immediately
Pricing:
- 1$2.69
- 455$2.00901
Quote It
Technical Details
- Series:117
- Package:Tube
- Part Status:Active
- Type:DIP, 0.3" (7.62mm) Row Spacing
- Number of Positions or Pins (Grid):16 (2 x 8)
- Pitch - Mating:0.070" (1.78mm)
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:30.0µin (0.76µm)
- Contact Material - Mating:Beryllium Copper
- Mounting Type:Through Hole
- Features:Open Frame
- Termination:Solder
- Pitch - Post:0.070" (1.78mm)
- Contact Finish - Post:Tin-Lead
- Contact Finish Thickness - Post:200.0µin (5.08µm)
- Contact Material - Post:Brass Alloy
- Housing Material:Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
- Operating Temperature:-55°C ~ 125°C
Related Products

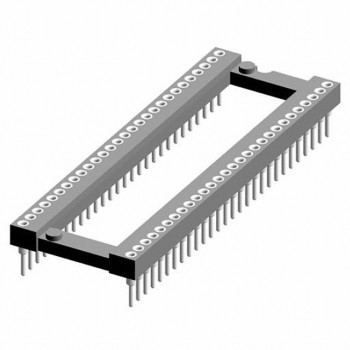

CONN IC DIP SOCKET 52POS GOLD
- 1: $2.69483
- 133: $2.69483

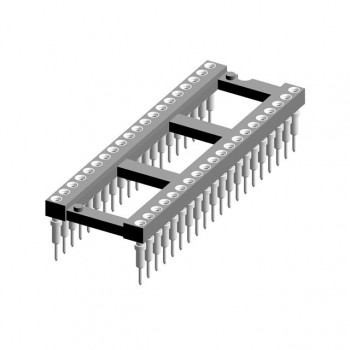

CONN IC DIP SOCKET 64POS GOLD
