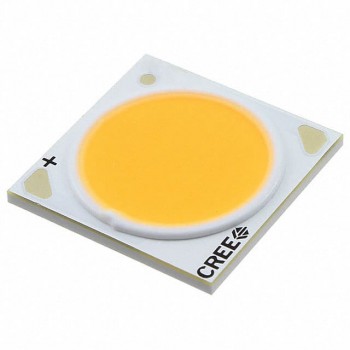

CXA1830-0000-000N0US440F
Cree
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionLED COB CXA1830 NEUTRAL WHITE SQ
- CategoryLED Lighting - COBs, Engines, Modules, Strips
- Datasheet CXA1830-0000-000N0US440F Datasheet
-
ECAD Model
- Share
In Stock: 108
Can ship immediately
Pricing:
- 1$8.5
- 100$8.5
Quote It
Technical Details
- Series:XLamp® CXA1830
- Package:Tray
- Part Status:Active
- Type:Chip On Board (COB)
- Color:White, Neutral
- CCT (K):4000K 4-Step MacAdam Ellipse
- Wavelength:-
- Configuration:Square
- Luminous Flux @ Current/Temperature:3095lm (2990lm ~ 3200lm)
- Current - Test:800mA
- Temperature - Test:85°C
- Voltage - Forward (Vf) (Typ):37V
- Lumens/Watt @ Current - Test:105 lm/W
- Current - Max:1.4A
- CRI (Color Rendering Index):90
- Viewing Angle:115°
- Features:-
- Size / Dimension:17.85mm L x 17.85mm W
- Height:1.70mm
- Light Emitting Surface (LES):14.00mm Dia
- Lens Type:Flat
