NTR2101PT1G
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionSINGLE P-CHANNEL SMALL SIGNAL MO
- CategoryTransistors - FETs, MOSFETs - Single
- Datasheet NTR2101PT1G Datasheet
-
ECAD Model
- Share
In Stock: 11,602
Can ship immediately
Pricing:
- 1$0.08
- 3,000$0.02053
- 6,000$0.01944
- 15,000$0.01781
- 30,000$0.01672
- 75,000$0.01508
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Active
- FET Type:P-Channel
- Technology:MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss):8 V
- Current - Continuous Drain (Id) @ 25°C:-
- Drive Voltage (Max Rds On, Min Rds On):1.8V, 4.5V
- Rds On (Max) @ Id, Vgs:52mOhm @ 3.5A, 4.5V
- Vgs(th) (Max) @ Id:1V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs:15 nC @ 4.5 V
- Vgs (Max):±8V
- Input Capacitance (Ciss) (Max) @ Vds:1.173 pF @ 4 V
- FET Feature:-
- Power Dissipation (Max):960mW (Ta)
- Operating Temperature:-55°C ~ 150°C (TJ)
- Mounting Type:Surface Mount
- Supplier Device Package:SOT-23-3 (TO-236)
- Package / Case:TO-236-3, SC-59, SOT-23-3
Related Products

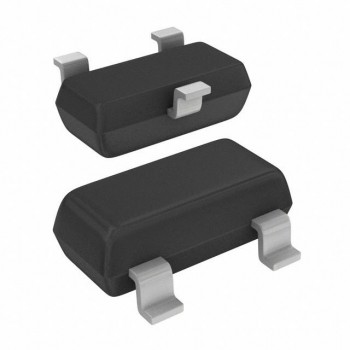

MOSFET N-CH 20V 361MA SOT883
