NTD3055L104-1G
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionSINGLE N-CHANNEL LOGIC LEVEL POW
- CategoryTransistors - FETs, MOSFETs - Single
- Datasheet NTD3055L104-1G Datasheet
-
ECAD Model
- Share
In Stock: 159
Can ship immediately
Pricing:
- 1$0.28
- 75$0.21622
- 150$0.1883
- 525$0.13948
- 1,050$0.11159
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Active
- FET Type:N-Channel
- Technology:MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss):60 V
- Current - Continuous Drain (Id) @ 25°C:12A (Ta)
- Drive Voltage (Max Rds On, Min Rds On):5V
- Rds On (Max) @ Id, Vgs:104mOhm @ 6A, 5V
- Vgs(th) (Max) @ Id:2V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs:20 nC @ 5 V
- Vgs (Max):±15V
- Input Capacitance (Ciss) (Max) @ Vds:440 pF @ 25 V
- FET Feature:-
- Power Dissipation (Max):1.5W (Ta), 48W (Tj)
- Operating Temperature:-55°C ~ 175°C (TJ)
- Mounting Type:Through Hole
- Supplier Device Package:I-PAK
- Package / Case:TO-251-3 Short Leads, IPak, TO-251AA
Related Products
SMALL SIGNAL FIELD-EFFECT TRANSI
- 1: $0.28000
MOSFET N-CH 30V 69A SO8FL
- 1: $0.28000
- 1500: $0.28000
MOSFET N-CH 30V 11A SO8FL
- 1: $0.28000
- 1500: $0.19485

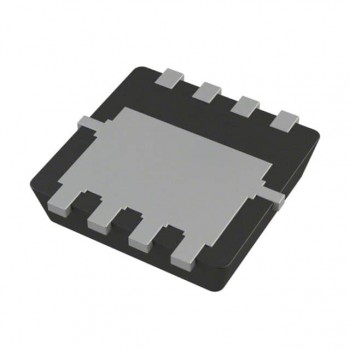

MOSFET N-CH 40V 30A DFN33-8L
