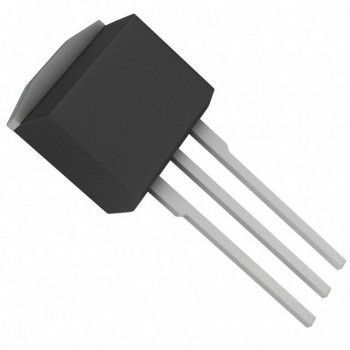

BUK9515-60E,127

Technical Details

• Series:TrenchMOS™
• Package:Tube
• Part Status:Obsolete
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):60 V
• Current - Continuous Drain (Id) @ 25°C:54A (Tc)
• Drive Voltage (Max Rds On, Min Rds On):5V, 10V
• Rds On (Max) @ Id, Vgs:13mOhm @ 15A, 10V
• Vgs(th) (Max) @ Id:2.1V @ 1mA

• Gate Charge (Qg) (Max) @ Vgs:20.5 nC @ 5 V
• Vgs (Max):±10V
• Input Capacitance (Ciss) (Max) @ Vds:2.651 pF @ 25 V
• FET Feature:-
• Power Dissipation (Max):96W (Tc)
• Operating Temperature:-55°C ~ 175°C (TJ)
• Mounting Type:Through Hole
• Supplier Device Package:TO-220AB
• Package / Case:TO-220-3
