IXTT100N25P
Wickmann / Littelfuse
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionMOSFET N-CH 250V 100A TO268
- CategoryTransistors - FETs, MOSFETs - Single
- Datasheet IXTT100N25P Datasheet
-
ECAD Model
- Share
In Stock: 3,259
Can ship immediately
Pricing:
- 1$11.89
- 30$9.6611
Quote It
Technical Details
- Series:PolarHT™
- Package:Tube
- Part Status:Active
- FET Type:N-Channel
- Technology:MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss):250 V
- Current - Continuous Drain (Id) @ 25°C:100A (Tc)
- Drive Voltage (Max Rds On, Min Rds On):10V
- Rds On (Max) @ Id, Vgs:24mOhm @ 50A, 10V
- Vgs(th) (Max) @ Id:5V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs:185 nC @ 10 V
- Vgs (Max):±20V
- Input Capacitance (Ciss) (Max) @ Vds:6300 pF @ 25 V
- FET Feature:-
- Power Dissipation (Max):600W (Tc)
- Operating Temperature:-55°C ~ 150°C (TJ)
- Mounting Type:Surface Mount
- Supplier Device Package:TO-268
- Package / Case:TO-268-3, D³Pak (2 Leads + Tab), TO-268AA
Related Products
PB-F POWER MOSFET TRANSISTOR TO2
- 1: $11.99000
MOSFET N-CHANNEL 200V 30A TO247
- 1: $12.02000
MOSFET N-CH 150V 150A TO263AA
- 1: $12.10000
MOSFET N-CH 150V 150A TO263-7
- 1: $12.10000
TRANS SJT N-CH 650V 45A TO247
- 1: $12.24000

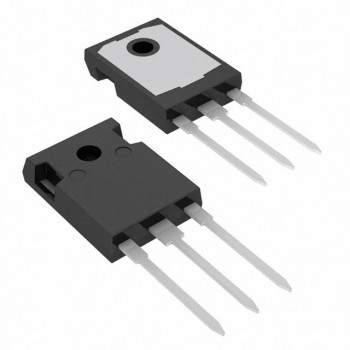

MOSFET N-CH 650V 68A TO247
