NVTFS6H854NLTAG
ON Semiconductor- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionMOSFET N-CH 80V 10A/41A 8WDFN
- CategoryTransistors - FETs, MOSFETs - Single
-
ECAD Model
- Share
In Stock: 9,143
Can ship immediately
Pricing:
- 1$0.39793
Quote It
Technical Details
- Series:Automotive, AEC-Q101
- Package:Tape & Reel (TR)
- Part Status:Active
- FET Type:N-Channel
- Technology:MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss):80 V
- Current - Continuous Drain (Id) @ 25°C:10A (Ta), 41A (Tc)
- Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
- Rds On (Max) @ Id, Vgs:13.4mOhm @ 10A, 10V
- Vgs(th) (Max) @ Id:2V @ 45µA
- Gate Charge (Qg) (Max) @ Vgs:17 nC @ 10 V
- Vgs (Max):±20V
- Input Capacitance (Ciss) (Max) @ Vds:902 pF @ 40 V
- FET Feature:-
- Power Dissipation (Max):3.2W (Ta), 54W (Tc)
- Operating Temperature:-55°C ~ 175°C (TJ)
- Mounting Type:Surface Mount
- Supplier Device Package:8-WDFN (3.3x3.3)
- Package / Case:8-PowerWDFN
Related Products
T6 40V DPAK EXPANSION AND
- 1: $0.39840
- 2500: $0.38486
MOSFET P-CH 30V 14A 8SO T&R 2
- 1: $0.39886
- 2500: $0.39886
MOSFET BVDSS: 61V-100V SO-8
- 1: $0.39886

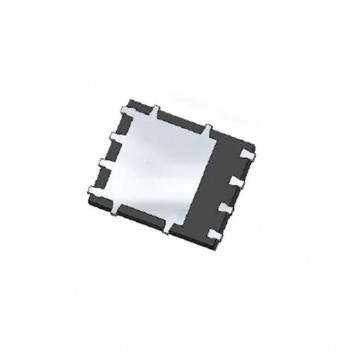

MOSFET N-CH 100V PWRDI5060
