APT8043SFLLG

Technical Details

• Series:*
• Package:Tube
• Part Status:Active
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):800 V
• Current - Continuous Drain (Id) @ 25°C:20A (Tc)
• Drive Voltage (Max Rds On, Min Rds On):-
• Rds On (Max) @ Id, Vgs:430mOhm @ 10A, 10V
• Vgs(th) (Max) @ Id:5V @ 1mA

• Gate Charge (Qg) (Max) @ Vgs:85 nC @ 10 V
• Vgs (Max):-
• Input Capacitance (Ciss) (Max) @ Vds:2500 pF @ 25 V
• FET Feature:-
• Power Dissipation (Max):-
• Operating Temperature:-
• Mounting Type:Surface Mount
• Supplier Device Package:D3 [S]

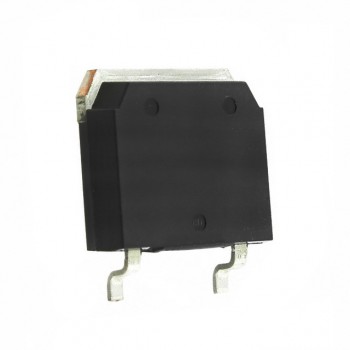

• Package / Case:TO-268-3, D³Pak (2 Leads + Tab), TO-268AA
