IXFK64N50Q3

Wickmann / Littelfuse
In Stock: 149

Can ship immediately

Pricing:
  • 1$22.42
  • 25$18.85318
  • 100$17.32454
  • 500$14.77682

Quote It

Technical Details

  • Series:HiPerFET™
  • Package:Tube
  • Part Status:Active
  • FET Type:N-Channel
  • Technology:MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss):500 V
  • Current - Continuous Drain (Id) @ 25°C:64A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On):10V
  • Rds On (Max) @ Id, Vgs:85mOhm @ 32A, 10V
  • Vgs(th) (Max) @ Id:6.5V @ 4mA



  • Gate Charge (Qg) (Max) @ Vgs:145 nC @ 10 V
  • Vgs (Max):±30V
  • Input Capacitance (Ciss) (Max) @ Vds:6950 pF @ 25 V
  • FET Feature:-
  • Power Dissipation (Max):1000W (Tc)
  • Operating Temperature:-55°C ~ 150°C (TJ)
  • Mounting Type:Through Hole
  • Supplier Device Package:TO-264AA (IXFK)
  • Package / Case:TO-264-3, TO-264AA

Related Products


IXFK32N80Q3

MOSFET N-CH 800V 32A TO264AA

IXFK32N80Q3 Datasheet
  • 1: $22.42000
  • 25: $18.85318
  • 100: $17.32454

IXFK48N60Q3

MOSFET N-CH 600V 48A TO264AA

IXFK48N60Q3 Datasheet
  • 1: $22.42000
  • 25: $18.85318
  • 100: $17.32454

APT30M36LLLG

MOSFET N-CH 300V 84A TO264

  • 1: $22.56000

IXFN100N20

MOSFET N-CH 200V 100A SOT-227B

IXFN100N20 Datasheet
  • 1: $22.64200
  • 10: $22.64200

IXFL132N50P3

MOSFET N-CH 500V 63A ISOPLUS264

IXFL132N50P3 Datasheet
  • 1: $22.70000
  • 25: $19.09221
  • 100: $17.54419

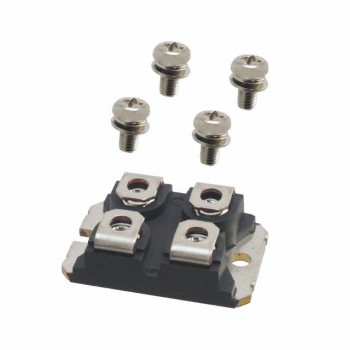

IXFN48N60P

MOSFET N-CH 600V 40A SOT227B

IXFN48N60P Datasheet
  • 1: $22.77000
  • 10: $21.06225
  • 30: $19.35450

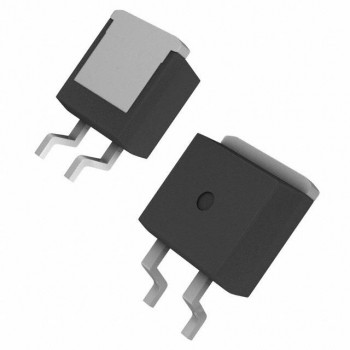

IXFT150N25X3HV
