APT58F50J
Microchip Technology
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionMOSFET N-CH 500V 58A ISOTOP
- CategoryTransistors - FETs, MOSFETs - Single
- Datasheet APT58F50J Datasheet
-
ECAD Model
- Share
In Stock: 169
Can ship immediately
Pricing:
- 1$26.13
- 20$26.13
Quote It
Technical Details
- Series:POWER MOS 8™
- Package:Tube
- Part Status:Active
- FET Type:N-Channel
- Technology:MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss):500 V
- Current - Continuous Drain (Id) @ 25°C:58A (Tc)
- Drive Voltage (Max Rds On, Min Rds On):10V
- Rds On (Max) @ Id, Vgs:65mOhm @ 42A, 10V
- Vgs(th) (Max) @ Id:5V @ 2.5mA
- Gate Charge (Qg) (Max) @ Vgs:340 nC @ 10 V
- Vgs (Max):±30V
- Input Capacitance (Ciss) (Max) @ Vds:13500 pF @ 25 V
- FET Feature:-
- Power Dissipation (Max):540W (Tc)
- Operating Temperature:-55°C ~ 150°C (TJ)
- Mounting Type:Chassis Mount

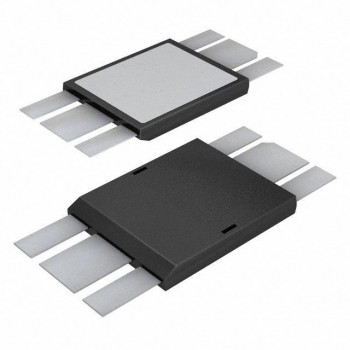

- Supplier Device Package:ISOTOP®
- Package / Case:SOT-227-4, miniBLOC
