In Stock: 172

Can ship immediately

Pricing:

Call for price or sumbit a RFQ

Quote It

Technical Details

  • Series:HEXFET®
  • Package:Tube
  • Part Status:Discontinued at Digi-Key
  • FET Type:N-Channel
  • Technology:MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss):55 V
  • Current - Continuous Drain (Id) @ 25°C:25A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On):5V, 10V
  • Rds On (Max) @ Id, Vgs:37mOhm @ 15A, 10V
  • Vgs(th) (Max) @ Id:3V @ 250µA



  • Gate Charge (Qg) (Max) @ Vgs:20 nC @ 5 V
  • Vgs (Max):±16V
  • Input Capacitance (Ciss) (Max) @ Vds:710 pF @ 25 V
  • FET Feature:-
  • Power Dissipation (Max):57W (Tc)
  • Operating Temperature:-55°C ~ 175°C (TJ)
  • Mounting Type:Surface Mount
  • Supplier Device Package:D-Pak
  • Package / Case:TO-252-3, DPak (2 Leads + Tab), SC-63

Related Products


IRFU3709ZPBF

MOSFET N-CH 30V 86A IPAK

IRFU3709ZPBF Datasheet

Call for price


IRF7828PBF

MOSFET N-CH 30V 13.6A 8SO

IRF7828PBF Datasheet

Call for price


IRLR7811WPBF

MOSFET N-CH 30V 64A DPAK

IRLR7811WPBF Datasheet

Call for price


IRL3715ZCLPBF

MOSFET N-CH 20V 50A TO262

IRL3715ZCLPBF Datasheet

Call for price


IRF3704ZLPBF

MOSFET N-CH 20V 67A TO262

IRF3704ZLPBF Datasheet

Call for price


IRF3704ZPBF

MOSFET N-CH 20V 67A TO220AB

IRF3704ZPBF Datasheet

Call for price


IRF7342D2PBF

MOSFET P-CH 55V 3.4A 8SO

IRF7342D2PBF Datasheet

Call for price


IRFU3711ZPBF

MOSFET N-CH 20V 93A IPAK

IRFU3711ZPBF Datasheet

Call for price


IRF7490PBF

MOSFET N-CH 100V 5.4A 8SO

IRF7490PBF Datasheet

Call for price

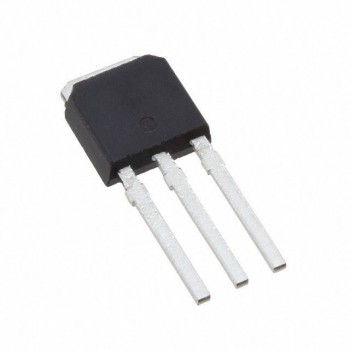

IRLU3717PBF
