ZXMN10B08E6TC
Zetex Semiconductors (Diodes Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionMOSFET N-CH 100V 1.6A SOT26
- CategoryTransistors - FETs, MOSFETs - Single
- Datasheet ZXMN10B08E6TC Datasheet
-
ECAD Model
- Share
In Stock: 144
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)
- Part Status:Obsolete
- FET Type:N-Channel
- Technology:MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss):100 V
- Current - Continuous Drain (Id) @ 25°C:1.6A (Ta)
- Drive Voltage (Max Rds On, Min Rds On):4.3V, 10V
- Rds On (Max) @ Id, Vgs:230mOhm @ 1.6A, 10V
- Vgs(th) (Max) @ Id:3V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs:9.2 nC @ 10 V
- Vgs (Max):±20V
- Input Capacitance (Ciss) (Max) @ Vds:497 pF @ 50 V
- FET Feature:-
- Power Dissipation (Max):1.1W (Ta)
- Operating Temperature:-55°C ~ 150°C (TJ)
- Mounting Type:Surface Mount
- Supplier Device Package:SOT-26

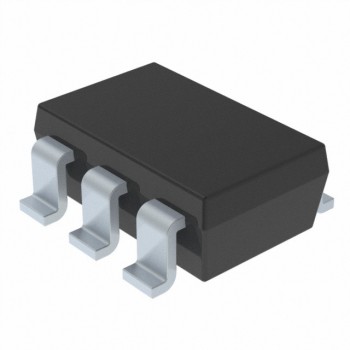

- Package / Case:SOT-23-6
