UPA2736GR-E1-AT
Renesas Electronics America
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionMOSFET P-CH 30V 14A 8SOP
- CategoryTransistors - FETs, MOSFETs - Single
- Datasheet UPA2736GR-E1-AT Datasheet
-
ECAD Model
- Share
In Stock: 102
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)
- Part Status:Obsolete
- FET Type:P-Channel
- Technology:MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss):30 V
- Current - Continuous Drain (Id) @ 25°C:14A (Ta)
- Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
- Rds On (Max) @ Id, Vgs:7mOhm @ 14A, 10V
- Vgs(th) (Max) @ Id:-
- Gate Charge (Qg) (Max) @ Vgs:80 nC @ 10 V
- Vgs (Max):±20V
- Input Capacitance (Ciss) (Max) @ Vds:3400 pF @ 10 V
- FET Feature:-
- Power Dissipation (Max):1.1W (Ta)
- Operating Temperature:150°C (TJ)
- Mounting Type:Surface Mount

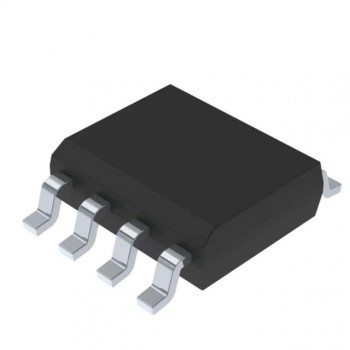

- Supplier Device Package:8-SOP
- Package / Case:8-PowerSOIC (0.173", 4.40mm Width)
