AOU2N60A

Technical Details

• Series:-
• Package:Tube
• Part Status:Obsolete
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):600 V
• Current - Continuous Drain (Id) @ 25°C:2A (Tc)
• Drive Voltage (Max Rds On, Min Rds On):10V
• Rds On (Max) @ Id, Vgs:4.7Ohm @ 1A, 10V
• Vgs(th) (Max) @ Id:4.5V @ 250µA

• Gate Charge (Qg) (Max) @ Vgs:11 nC @ 10 V
• Vgs (Max):±30V
• Input Capacitance (Ciss) (Max) @ Vds:295 pF @ 25 V
• FET Feature:-
• Power Dissipation (Max):57W (Tc)
• Operating Temperature:-50°C ~ 150°C (TJ)
• Mounting Type:Through Hole

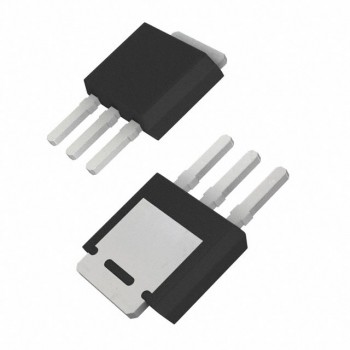

• Supplier Device Package:TO-251-3
• Package / Case:TO-251-3 Short Leads, IPak, TO-251AA
