AON7402L

Technical Details

• Series:-
• Package:Bulk
• Part Status:Obsolete
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):30 V
• Current - Continuous Drain (Id) @ 25°C:13.5A (Ta), 39A (Tc)
• Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
• Rds On (Max) @ Id, Vgs:10mOhm @ 20A, 10V
• Vgs(th) (Max) @ Id:2.2V @ 250µA

• Gate Charge (Qg) (Max) @ Vgs:17.8 nC @ 10 V
• Vgs (Max):±20V
• Input Capacitance (Ciss) (Max) @ Vds:770 pF @ 15 V
• FET Feature:-
• Power Dissipation (Max):3.1W (Ta), 26W (Tc)
• Operating Temperature:-55°C ~ 150°C (TJ)
• Mounting Type:Surface Mount

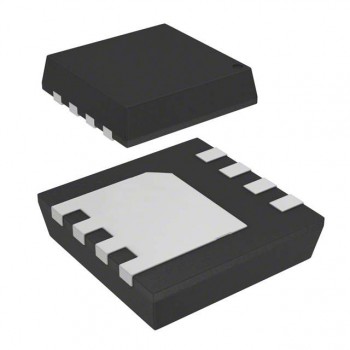

• Supplier Device Package:8-DFN (3x3)
• Package / Case:8-PowerVDFN
