1798910000
Weidmuller
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionTERM BLOCK PLUG 10POS 3.81MM
- CategoryTerminal Blocks - Headers, Plugs and Sockets
- Datasheet 1798910000 Datasheet
-
ECAD Model
- Share
In Stock: 204
Can ship immediately
Pricing:
- 1$8.88
- 50$8.4828
Quote It
Technical Details
- Series:Omnimate BC
- Package:Bulk
- Part Status:Active
- Type:Plug, Female Sockets
- Number of Positions:10
- Positions Per Level:10
- Number of Levels:1
- Pitch:0.150" (3.81mm)
- Header Orientation:-
- Plug Wire Entry:90°
- Termination Style:Screw - Clamping Yoke (Tension Sleeve)
- Mounting Type:Free Hanging (In-Line)
- Current - IEC:17.5A
- Voltage - IEC:320 V
- Current - UL:10 A
- Voltage - UL:300 V
- Wire Gauge or Range - AWG:16-28 AWG
- Wire Gauge or Range - mm²:0.2-1.5mm²
- Color:Green
- Operating Temperature:-50°C ~ 120°C
- Contact Mating Finish:Tin
- Features:Mating Flange
Related Products
SPRING CLAMP TERMINAL BLOCK, PLU
- 1: $5.99000
- 10: $4.56400
- 25: $4.27440
TERM BLOCK HDR 4POS VERT 5.08MM
- 1: $6.29000
- 10: $6.12300
- 50: $5.72260

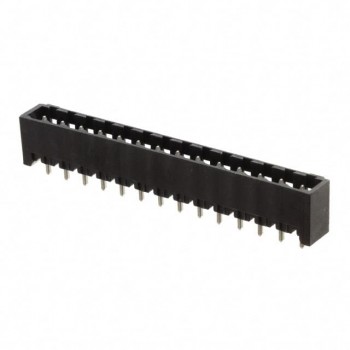

TERM BLOCK HDR 14POS VERT 5.08MM
