SMLJ10A
J.W. Miller / Bourns
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionTVS DIODE 10V 17V SMC
- CategoryTVS - Diodes
- Datasheet SMLJ10A Datasheet
-
ECAD Model
- Share
In Stock: 5,741
Can ship immediately
Pricing:
- 1$1.09
- 3,000$0.4578
- 6,000$0.436
Quote It
Technical Details
- Series:SMLJ
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Zener
- Unidirectional Channels:1
- Bidirectional Channels:-
- Voltage - Reverse Standoff (Typ):10V
- Voltage - Breakdown (Min):11.1V
- Voltage - Clamping (Max) @ Ipp:17V
- Current - Peak Pulse (10/1000µs):176.4A
- Power - Peak Pulse:3000W (3kW)
- Power Line Protection:No
- Applications:General Purpose
- Capacitance @ Frequency:-
- Operating Temperature:-55°C ~ 150°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:DO-214AB, SMC
- Supplier Device Package:SMC (DO-214AB)
Related Products

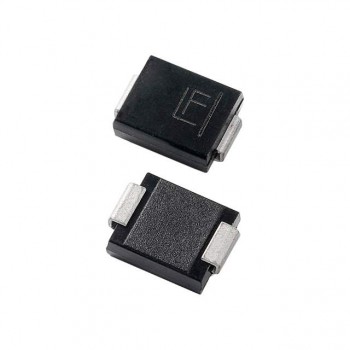

PD 300W VWM 24VCJ 137PFPACKAGE S
