SMBJ75CAHM4G
TSC (Taiwan Semiconductor)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionTVS DIODE 75V 121V DO214AA
- CategoryTVS - Diodes
- Datasheet SMBJ75CAHM4G Datasheet
-
ECAD Model
- Share
In Stock: 189
Can ship immediately
Pricing:
- 1$0.23445
- 3,000$0.23445
Quote It
Technical Details
- Series:Automotive, AEC-Q101, SMBJ
- Package:Tape & Reel (TR)
- Part Status:Active
- Type:Zener
- Unidirectional Channels:-
- Bidirectional Channels:1
- Voltage - Reverse Standoff (Typ):75V
- Voltage - Breakdown (Min):83.3V
- Voltage - Clamping (Max) @ Ipp:121V
- Current - Peak Pulse (10/1000µs):5.2A
- Power - Peak Pulse:600W
- Power Line Protection:No
- Applications:Automotive
- Capacitance @ Frequency:-
- Operating Temperature:-55°C ~ 150°C (TJ)
- Mounting Type:Surface Mount

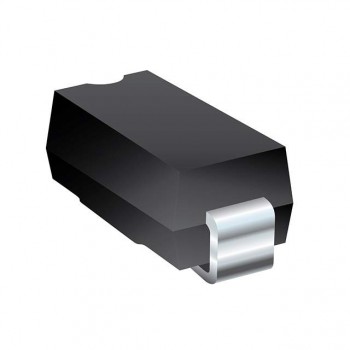

- Package / Case:DO-214AA, SMB
- Supplier Device Package:DO-214AA (SMB)
