LBM2016TR18J
TAIYO YUDEN
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 180NH 560MA 150 MOHM
- CategoryFixed Inductors
- Datasheet LBM2016TR18J Datasheet
-
ECAD Model
- Share
In Stock: 2,168
Can ship immediately
Pricing:
- 1$0.18
- 2,000$0.0777
- 4,000$0.0666
- 6,000$0.0629
- 10,000$0.0592
- 50,000$0.0555
- 100,000$0.05365
Quote It
Technical Details
- Series:LB, M Type
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:180 nH
- Tolerance:±5%
- Current Rating (Amps):560 mA
- Current - Saturation (Isat):-
- Shielding:Unshielded
- DC Resistance (DCR):150mOhm
- Q @ Freq:30 @ 25.2MHz
- Frequency - Self Resonant:500MHz
- Ratings:-
- Operating Temperature:-40°C ~ 105°C
- Inductance Frequency - Test:25.2 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:0806 (2016 Metric)
- Supplier Device Package:0806 (2016 Metric)
- Size / Dimension:0.079" L x 0.063" W (2.00mm x 1.60mm)
- Height - Seated (Max):0.071" (1.80mm)
Related Products
FIXED IND 40NH 320MA 438MOHM SMD
- 1: $0.25000

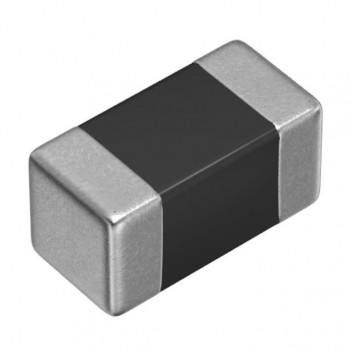

FIXED IND 300NH 70MA 7.5 OHM SMD
