PM4340.821NLT

PulseLarsen Antenna
  • Lifecycle status Active
  • RoHS RoHS Compliant
  • DescriptionFIXED IND 820NH 8A 13 MOHM SMD
  • CategoryFixed Inductors
  • ECAD Model
  • Share
In Stock: 2,131

Can ship immediately

Pricing:
  • 1$1

Quote It

Technical Details

  • Series:PM4340.XXXNLT
  • Package:Tape & Reel (TR)Cut Tape (CT)
  • Part Status:Active
  • Type:Molded
  • Material - Core:-
  • Inductance:820 nH
  • Tolerance:±20%
  • Current Rating (Amps):8 A
  • Current - Saturation (Isat):12.5A
  • Shielding:Shielded
  • DC Resistance (DCR):13mOhm Max



  • Q @ Freq:-
  • Frequency - Self Resonant:-
  • Ratings:AEC-Q200
  • Operating Temperature:-55°C ~ 155°C
  • Inductance Frequency - Test:100 kHz
  • Features:-
  • Mounting Type:Surface Mount
  • Package / Case:Nonstandard
  • Supplier Device Package:-
  • Size / Dimension:0.236" L x 0.213" W (6.00mm x 5.40mm)
  • Height - Seated (Max):0.118" (3.00mm)

Related Products


PM4340.331NLT

FIXED IND 330NH 14A 5 MOHM SMD

  • 1: $1.00000

AMDLA4010S-100MT

IND 10UH 1.1A 312MOHM SMD

  • 1: $0.94000

AMDLA4010S-2R2MT

IND 2.2UH 2.8A 108MOHM SMD

  • 1: $0.94000

AMDLA4020S-1R5MT

IND 1.5UH 4.8A 26MOHM SMD

  • 1: $0.94000

AMDLA4020S-1R0MT

IND 1UH 6.5A 20MOHM SMD

  • 1: $0.94000

SRP0312-2R2K

FIXED IND 2.2UH 3.1A 74 MOHM SMD

  • 1: $0.94000

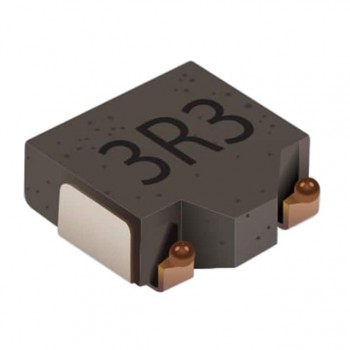

SRP0312-R47K
