MLF1608DR56MTD25
TDK Corporation
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 560NH 100MA 1.05 OHM
- CategoryFixed Inductors
- Datasheet MLF1608DR56MTD25 Datasheet
-
ECAD Model
- Share
In Stock: 2,831
Can ship immediately
Pricing:
- 1$0.24
- 4,000$0.0873
Quote It
Technical Details
- Series:MLF
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Multilayer
- Material - Core:Ferrite
- Inductance:560 nH
- Tolerance:±20%
- Current Rating (Amps):100 mA
- Current - Saturation (Isat):-
- Shielding:Shielded
- DC Resistance (DCR):1.05Ohm Max
- Q @ Freq:15 @ 25MHz
- Frequency - Self Resonant:170MHz
- Ratings:AEC-Q200
- Operating Temperature:-55°C ~ 125°C
- Inductance Frequency - Test:25 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:0603 (1608 Metric)
- Supplier Device Package:0603 (1608 Metric)
- Size / Dimension:0.063" L x 0.031" W (1.60mm x 0.80mm)
- Height - Seated (Max):0.037" (0.95mm)
Related Products
FIXED IND 12NH 1.2A 90 MOHM SMD
- 1: $0.24000
FIXED IND 68NH 150MA 1.5 OHM SMD

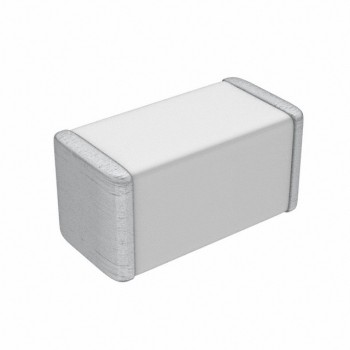

MLK1005S68NJT000 Datasheet- 1: $0.25000
