B82422H1153K000
TDK EPCOS
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 15UH 390MA 720 MOHM
- CategoryFixed Inductors
- Datasheet B82422H1153K000 Datasheet
-
ECAD Model
- Share
In Stock: 1,418
Can ship immediately
Pricing:
- 1$0.72
- 2,000$0.30415
- 4,000$0.28625
- 6,000$0.27731
- 10,000$0.26836
Quote It
Technical Details
- Series:SIMID
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:15 µH
- Tolerance:±10%
- Current Rating (Amps):390 mA
- Current - Saturation (Isat):-
- Shielding:Unshielded
- DC Resistance (DCR):720mOhm Max
- Q @ Freq:12 @ 2.52MHz
- Frequency - Self Resonant:26MHz
- Ratings:AEC-Q200
- Operating Temperature:-55°C ~ 150°C
- Inductance Frequency - Test:2.52 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:2-SMD, J-Lead
- Supplier Device Package:1210 (3225 Metric)
- Size / Dimension:0.126" L x 0.098" W (3.20mm x 2.50mm)
- Height - Seated (Max):0.094" (2.40mm)
Related Products
FIXED IND 330NH 5.25A 31 MOHM

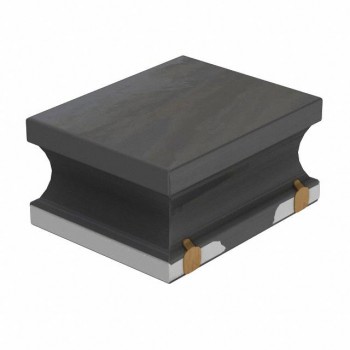

VLS252012HBX-R33M-1 Datasheet- 1: $0.66000
