LQH31HNR39K03L
TOKO / Murata
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 390NH 330MA 338 MOHM
- CategoryFixed Inductors
- Datasheet LQH31HNR39K03L Datasheet
-
ECAD Model
- Share
In Stock: 1,455
Can ship immediately
Pricing:
- 1$0.84
- 2,000$0.35785
- 4,000$0.3368
- 6,000$0.32628
- 10,000$0.31575
Quote It
Technical Details
- Series:LQH31
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:390 nH
- Tolerance:±10%
- Current Rating (Amps):330 mA
- Current - Saturation (Isat):-
- Shielding:Unshielded
- DC Resistance (DCR):338mOhm Max
- Q @ Freq:60 @ 100MHz
- Frequency - Self Resonant:300MHz
- Ratings:-
- Operating Temperature:-40°C ~ 85°C
- Inductance Frequency - Test:1 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:1206 (3216 Metric)
- Supplier Device Package:1206
- Size / Dimension:0.126" L x 0.063" W (3.20mm x 1.60mm)
- Height - Seated (Max):0.079" (2.00mm)
Related Products
FIXED IND 2.2UH 2.8A 84 MOHM SMD

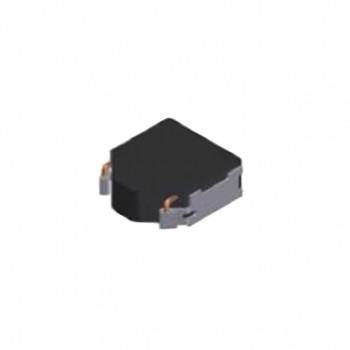

FDSD0412-H-2R2M=P3 Datasheet- 1: $0.88000
