SPM5015T-3R3M
TDK Corporation
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 3.3UH 3.3A 89.1 MOHM
- CategoryFixed Inductors
- Datasheet SPM5015T-3R3M Datasheet
-
ECAD Model
- Share
In Stock: 1,948
Can ship immediately
Pricing:
- 1$1.37
- 1,000$0.62688
- 3,000$0.60729
- 5,000$0.5877
- 10,000$0.56811
Quote It
Technical Details
- Series:SPM
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Not For New Designs
- Type:Wirewound
- Material - Core:Metal
- Inductance:3.3 µH
- Tolerance:±20%
- Current Rating (Amps):3.3 A
- Current - Saturation (Isat):4.2A
- Shielding:Shielded
- DC Resistance (DCR):89.1mOhm Max
- Q @ Freq:-
- Frequency - Self Resonant:-
- Ratings:-
- Operating Temperature:-40°C ~ 125°C
- Inductance Frequency - Test:100 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.213" L x 0.201" W (5.40mm x 5.10mm)
- Height - Seated (Max):0.059" (1.50mm)
Related Products
FIXED IND 1.5UH 8.2A 17.7 MOHM
- 1: $1.37000
- 2000: $0.62640
FIXED IND 10UH 2.5A 129.5 MOHM
- 1: $1.37000
- 2000: $0.62640

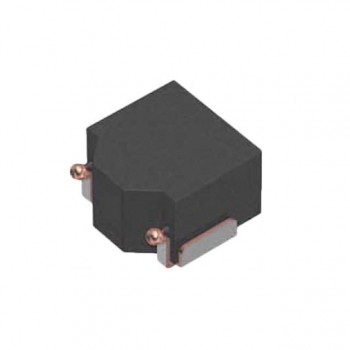

FIXED IND 1UH 6.3A 24.8 MOHM SMD
