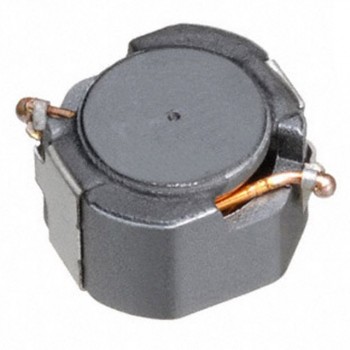

LGJ7045TC-221M-H
TDK Corporation
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 220UH 520MA 660 MOHM
- CategoryFixed Inductors
- Datasheet LGJ7045TC-221M-H Datasheet
-
ECAD Model
- Share
In Stock: 1,110
Can ship immediately
Pricing:
- 1$3.93
- 10$3.60382
- 100$2.35861
- 500$2.09657
Quote It
Technical Details
- Series:LGJ
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:220 µH
- Tolerance:±20%
- Current Rating (Amps):520 mA
- Current - Saturation (Isat):620mA
- Shielding:Shielded
- DC Resistance (DCR):660mOhm
- Q @ Freq:-
- Frequency - Self Resonant:-
- Ratings:AEC-Q200
- Operating Temperature:-40°C ~ 125°C
- Inductance Frequency - Test:100 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.283" L x 0.272" W (7.20mm x 6.90mm)
- Height - Seated (Max):0.177" (4.50mm)
