SDR0604-820KL
J.W. Miller / Bourns
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 82UH 580MA 600MOHM SMD
- CategoryFixed Inductors
- Datasheet SDR0604-820KL Datasheet
-
ECAD Model
- Share
In Stock: 679
Can ship immediately
Pricing:
- 1$0.57
- 400$0.25968
- 800$0.1989
- 1,200$0.18785
- 2,800$0.1768
- 10,000$0.1729
Quote It
Technical Details
- Series:SDR0604
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:82 µH
- Tolerance:±10%
- Current Rating (Amps):580 mA
- Current - Saturation (Isat):750mA
- Shielding:Unshielded
- DC Resistance (DCR):600mOhm Max
- Q @ Freq:20 @ 2.52MHz
- Frequency - Self Resonant:9MHz
- Ratings:-
- Operating Temperature:-40°C ~ 125°C
- Inductance Frequency - Test:1 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.228" L x 0.228" W (5.80mm x 5.80mm)
- Height - Seated (Max):0.189" (4.80mm)
Related Products

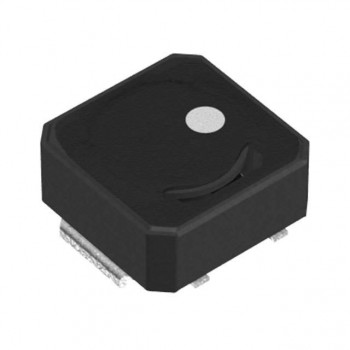

FIXED IND 3.3UH 1.6A 83 MOHM SMD
